 KNX DALI Gateway & Controllers

OVERVIEW

The KNX DALI Gateway connects the KNX bus to the DALI bus. Lights with DALI electronic ballasts can therefore be integrated into a complete KNX system in the form of a subsystem and operated using the wide range of KNX devices available.

The device converts switching and dimming commands of the connected KNX system into corresponding DALI telegrams or status information from the DALI bus into KNX telegrams.

Most common gateways comes with Single and two Channel DALI .  The electronic ballasts can be switched, dimmed or set to a defined value in 16 groups for each gateway.

The DALI control cables can be routed in a 5-core cable together with the wires for conducting mains voltage (single basic insulation is sufficient) in accordance with EN 60929.

A maximum cable length of 300 m must not be exceeded for the entire DALI installation of a segment (recommended cross-section 1.5 mm2).

Available in brands: Schneider, Theben, Panasonic, ABB, Hager, Siemens, Ipas.

• NOTES:
• The power required for up to 64 connected electronic ballasts is supplied directly from the gateway. No additional DALI power supply is required, nor is this permissible.

• The special interface for configuration of the DALI segment is designed as a DCA (Device Control App) for the ETS. Note that, in addition to the product database (knxprod file), a corresponding ETS app (etsapp file) is also installed. Both files are available in the KNX online catalogue and on the manufacturer website.

• DALI devices for single-battery emergency lights of device type DT-1 can be read by the gateway and switched and operated via DALI telegrams if required. DALI commands for starting and reading test results are not supported.

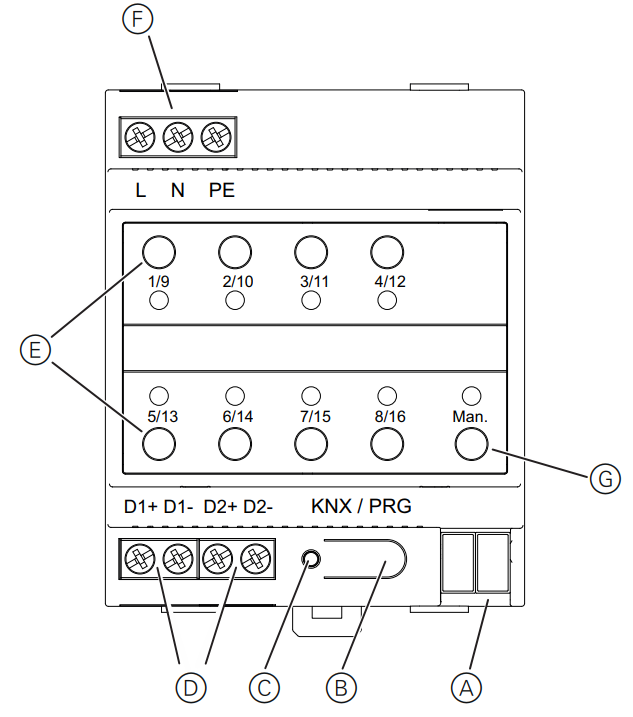

A - KNX bus connecting terminal

B - Programming button, normal/programming mode

C - Programming LED, normal/programming mode

D - DALI output terminals: D1 (channel 1) and D2 (channel 2)

E - Operating buttons with a status LED (red) for each group (1-8 and 9-16) for manual mode (group operation/group status, broadcast and service functions)

F - Mains connection

G - Operating button with status LED (RGB) for activating manual mode

FEATURES OF DALI GATEWAY:

• 1/2 independent DALI channels

• Addressing of 16 DALI groups per channel

• Flexible DALI commissioning concept in ETS Application.

• Coloured light control with the support of ballasts of device type 8

• Coloured light control depending on ballast subtype: – Colour temperature (DT-8 subtype Tc) – XY colour (DT-8 subtype XY) – RGB (DT-8 subtype RGBWAF) – HSV (DT-8 subtype RGBWAF) – RGBW (DT-8 subtype RGBWAF) – DT-8 subtype PrimaryN is not supported

• Support of timer programmes for control of groups by value and/or colour

• Various operating modes for groups such as continuous operation, night mode, staircase mode

• Integrated operating hours counter for each group, with alarm once the end of the service life has been reached

• Individual fault detection with objects for each individual light/electronic ballast

• Complex evaluation of faults at group/device level with fault number and fault rate calculation

• Fault threshold monitoring with individually adjustable threshold values

• Scene module for comprehensive programming of scenes

• Quick exchange function for simple replacement of individual defective electronic ballasts

• Manual operation of group and broadcast telegrams via operating buttons on the device

• Signalling of fault states and statuses via LEDs on the device.

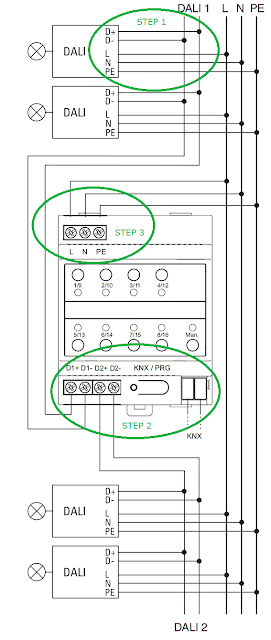

Steps to start up the KNX DALI gateway:

STEP 1 : Wire the DALI segment

STEP 2:  Connect the gateway to DALI and KNX bus

STEP 3: Connect the gateway to the mains voltage

 STEP 4: Load the ETS application program (.knxprod) and install the ETS app (.etsapp)

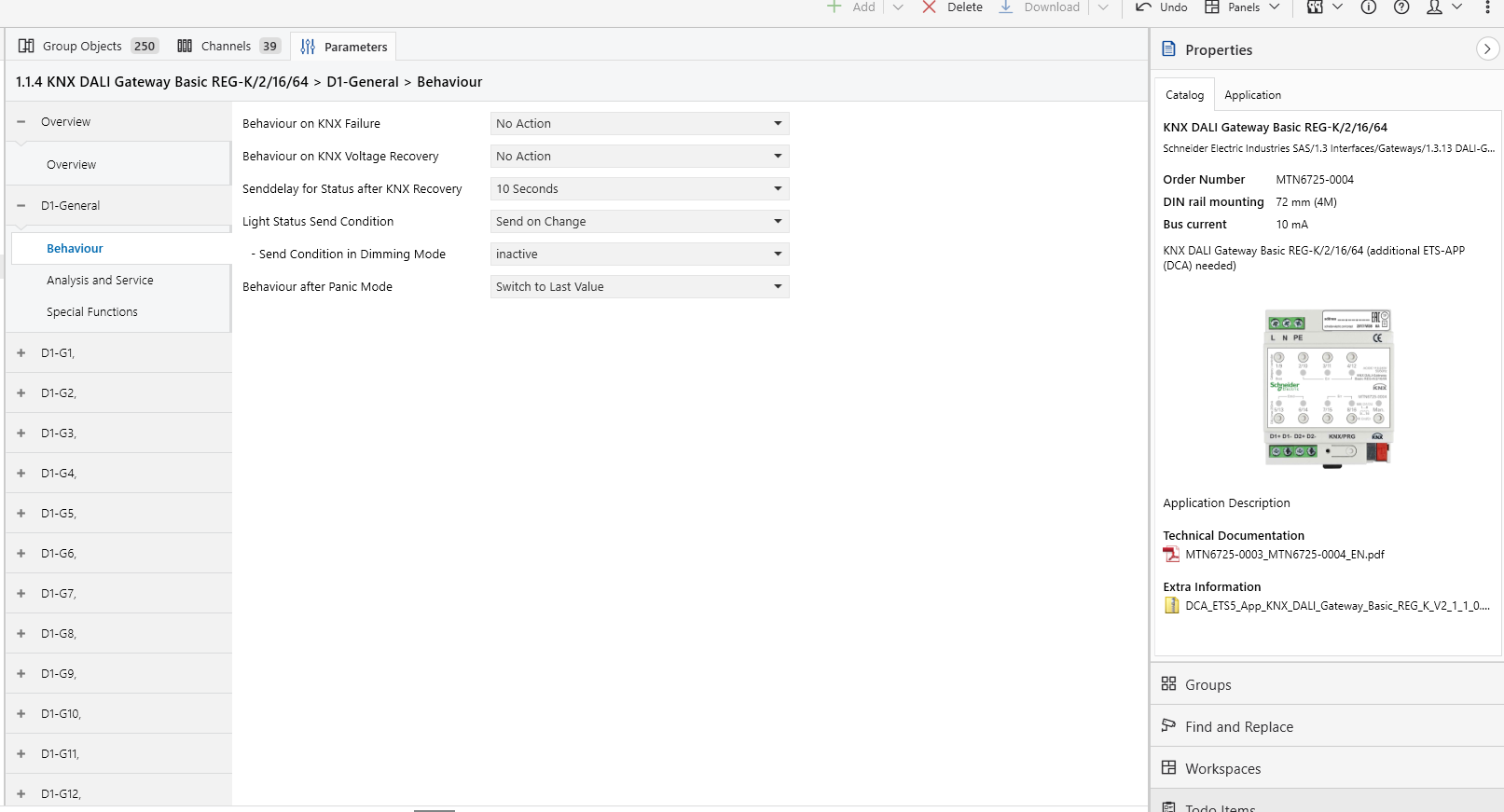

STEP 5: Configure the ETS parameters and objects

6 Assign the ETS-DCA DALI groups

7 Start up the ETS-DCA DALI

8 ETS download of application
